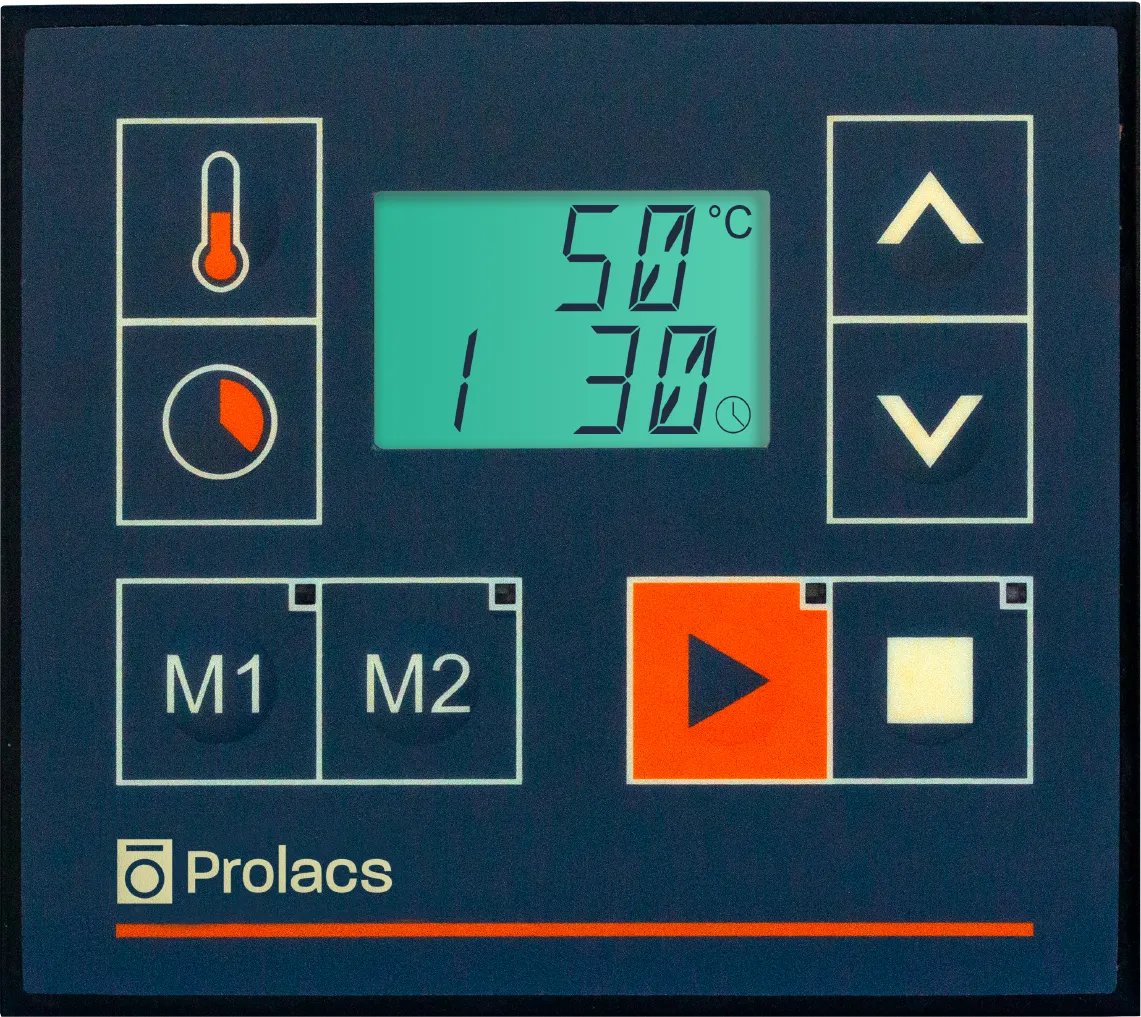

Felis-D1
Tumble Dryer Controller
It is an economic model with 2 programs designed for industrial drying machines, suitable for heavy industrial conditions. The simplified Custom Desing is an easy-to-use, standard serial controller thanks to its LCD display and membrane keypad. Resistant to vibration and dust. The design of the control panel is customized according to the needs and designed in accordance with the brand according to customer demands.
Features
Inputs/Outputs
Analog Input
Temperature Sensor Input (-10~100 °C)
1
Digital Input
5-24V AC/DC
4
Digital Output
24V AC/DC 1A Relay NO
(Optinonal 220V AC)
4
Programming
Program Count
5 Default Programs
5
Technical Specifications
Operating Voltage
12V AC/DC (Optional 220V AC)
Power Consumption
Max 4W
Operating Temperature
0~60 °C
Operating Humidty
%10 - 85 (Non-Condensing)
Isolation
2000V Digital
Keyboard
8 Keys
Display
45x30 mm Custom Designed LCD
Processor
Micro Processor
