Felis-D2
Tumble Dryer Controller

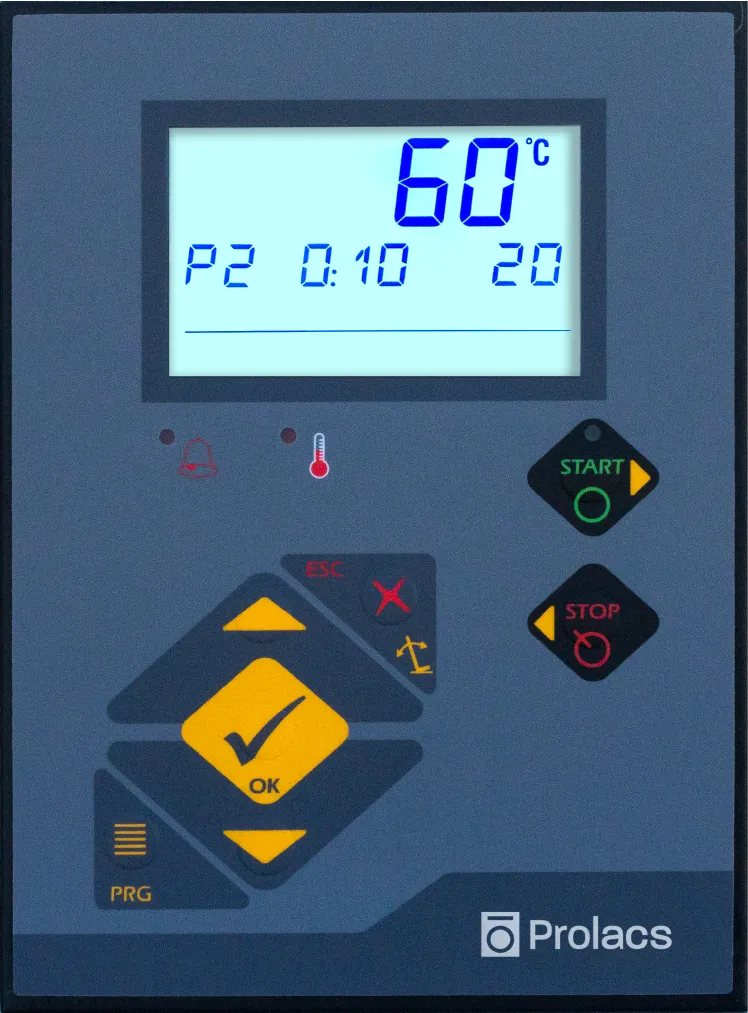

It is a control panel for industrial drying machines designed for heavy industrial conditions. It is an easy-to-use, semi-professional serial controller with Custom Design LCD display and membrane keypad supported by icons. Resistant to vibration and dust. It has 16 user-defined programs. The design of the control panel is customized according to the needs and designed in accordance with the brand according to customer demands.
Specifications
Features
Inputs/Outputs
Analog Input
Onboard Level Sensor (Hydrostatic 0-100 cm)
Temperature Sensor Input (-10~100 °C)
Temperature Input PT100 (Optional)
1
1
1
Analog Output
AC Drive Control 0~10V DC
1
Digital Input
5-24V DC/AC
16
Programming
Program Count
9 User Programs
Technical Specifications
Operating Voltage
24 V AC
Operating Temperature
0-60 °C
Operating Humidty
%10 - 85 (Non-Condensing)
Keyboard
7 Keys
Display
80x50 mm Custom Designed LCD
Dimensions
140x190x30 mm
Display
45x30 mm Custom Designed LCD
Processor
Micro Processor
