Felis-W3
Tumble Washer Controller

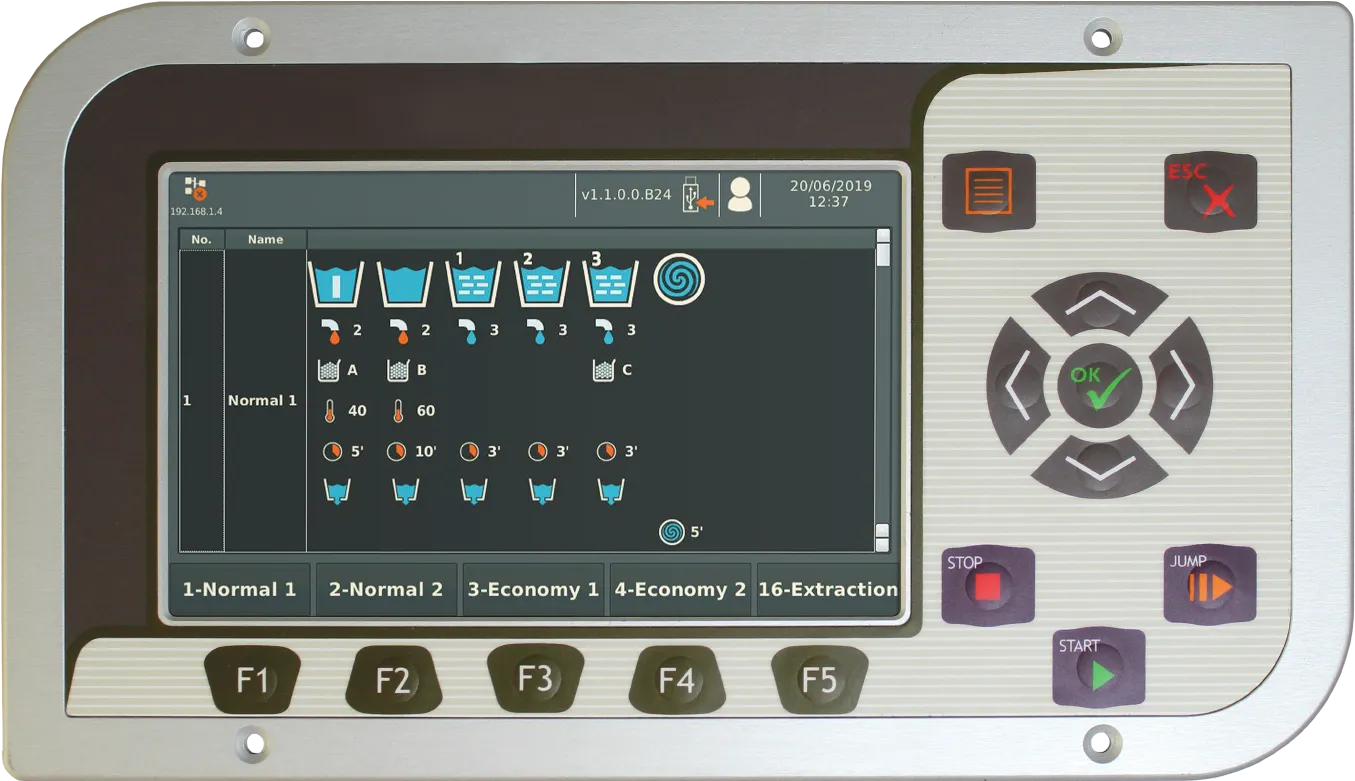

It is a professional serial controller with 7 ”LCD (800x480 RGB) screen for industrial washing machines, designed for heavy industrial conditions. Membrane keypad is easy to use. Resistant to vibration and dust. It has 100 programming capacity and 9 working stages. The design of the control panel is customized according to the needs and designed in accordance with the brand according to customer demands.
Specifications
Features
Inputs / Outputs
Analog Input
Onboard Level Sensor (Hydrostatic 0-100 cm)
Temperature Sensor Input (-10~100 °C)
1
1
Analog Output
AC Drive Control 0~10V DC
1
Digital Input
5-24V DC
8
Counter Input
5-24V DC 1 KHz
1
Digital Output
24V DC 1A Relay NO
16
Programming
Program Count
16 Default Programs
84 User Programs
100
Technical Specifications
Operating Voltage
24 VDC
Power Consumption
15 Watt
Operating Temperature
0~60 °C
Operating Humidty
%20~%95 (Non condensing)
Processor
ARM 11 CPU Core
Screen Size
7” RGB TFT
Screen Resolution
800x480
USB 2.0 (Rear Face)
1
RS485 Communication port
1
