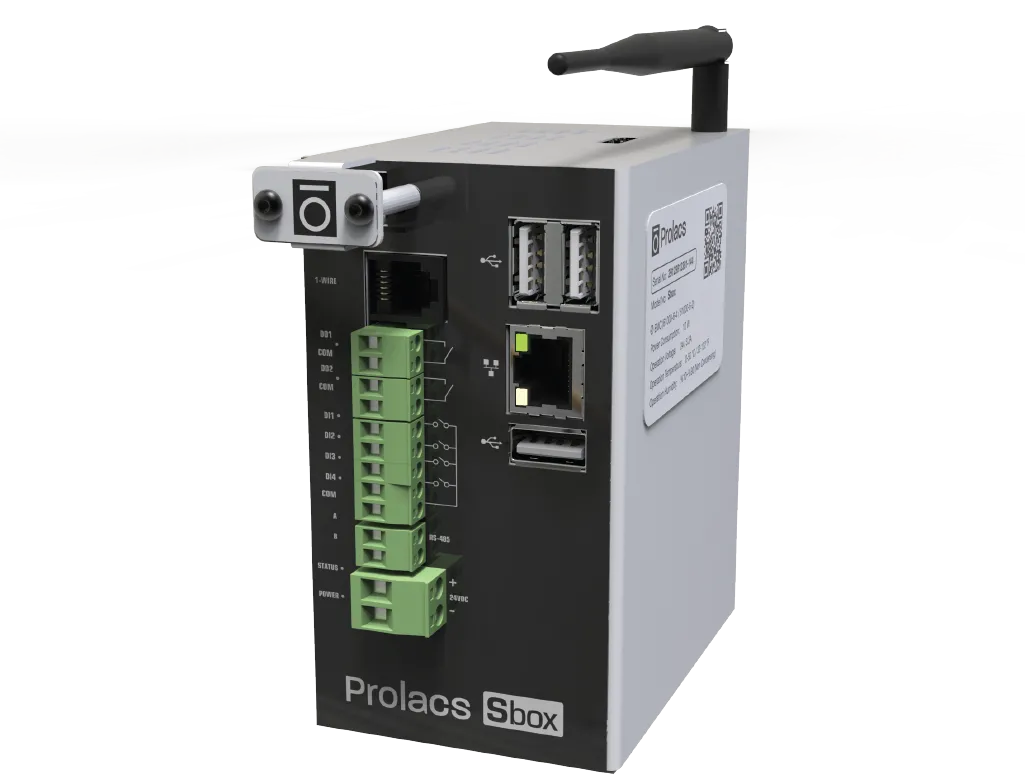

Smart Box
Laundry 4.0 Smart Controller
It is a compact data collection solution designed for Laundry monitoring. With Sbox, you can monitor data, define alarms, analyze data and receive notifications via SMS / E-Mail. With the data backup specification, you can save all historical data. It is a plug & play solution that does not require any computer or software for installation. Compatible with all kinds of systems with wide communication protocols.
Specifications
Features
Technical Specifications
Internal Temperature and Humidity Sensor
1
Internal Temperature Sensor Measuring Range
0 - 60 °C
Internal Temperature Sensor Sensitivity
Precision 0.5%
Internal Humidity Sensor Measuring Range
Relative Humidity 0 - 100
Humidity Sensor Sensitivity
Sensitivity 3%
Digital Sensor Port (1-Wire)
1 (Max. 16 pcs 1-Wire Sensor)
Max. 1-Wire Sensor Distance
50 m
Memory
8 GB
Processor
4-Core ARM
Digital Input
4 (5 - 24 VDC)
Digital Output
2 (Max. 30 VDC)
USB 2.0 Port
3
HDMI Output
1
10/100 Mb Ethernet
1
Serial Communication (RS-485)
1
External HDD, Keyboard, Mouse Connection
USB
Supply Voltage
24 VDC
Power Consumption
10 W
Operating Temperature Range
0 - 60 ° C
Operating Humidity Range
10% - 90% (Non-condensing)
Physical Dimensions
60x90x85 mm
Mounting Type
DIN Rail
EMC Compatibility
EN 61000-6-4 / EN 61000-6-2
Product Warranty
1 Year
Network Protocols
HTTP, HTTPS, SNMP Traps, TCP Socket IO, MQTT, Modbus TCP, Modbus RTU, OPC UA
