Smart Panel

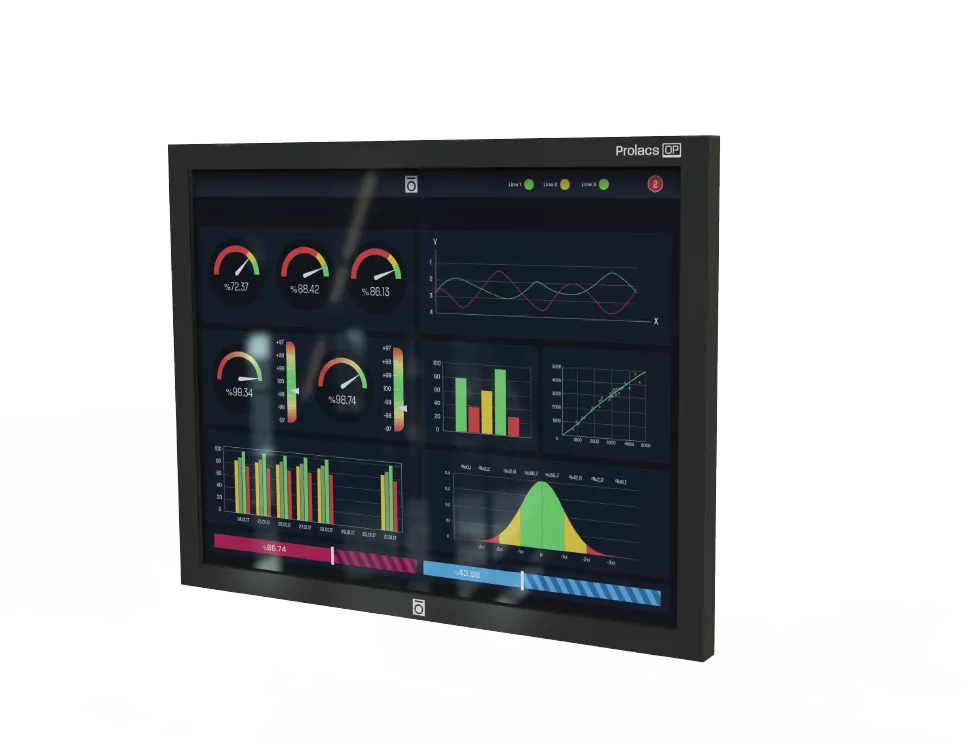

Operator Panel
It is a compact data collection solution designed for Laundry monitoring. With Operator Panel, you can monitor data, define alarms, analyze data and receive notifications via SMS / E-Mail. With the data backup specification, you can save all historical data. It is a plug & play solution that does not require any computer or software for installation. Compatible with all kinds of systems with wide communication protocols.
Specifications
Features
Inputs/Outputs
Internal Temperature and Humidity Sensor
1
Internal Temperature Sensor Measuring Range
0 - 60 °C
Internal Temperature Sensor Sensitivity
Precision 0.5%
Internal Humidity Sensor Measuring Range
Relative Humidity 0 - 100
Humidity Sensor Sensitivity
Sensitivity 3%
Digital Sensor Port (1-Wire)
1 (Max. 16 pcs 1-Wire Sensor)
Max. 1-Wire Sensor Distance
50 m
Memory
8 GB
Processor
4-Core ARM
Screen Size
10.1” LCD Touchscreen (Capacitive)
Digital Input
4 (5 - 24 VDC)
Digital Output
2 (Max. 30 VDC)
USB 2.0 Port
3
HDMI Output
1
10/100 Mb Ethernet
1
Serial Communication (RS-485)
1
External HDD, Keyboard, Mouse Connection
USB
Supply Voltage
24 VDC
Power Consumption
10 W
Operating Temperature Range
0 - 60 ° C
Operating Humidity Range
10% - 90% (Non-condensing)
Physical Dimensions
60x90x85 mm
Mounting Type
DIN Rail
EMC Compatibility
EN 61000-6-4 / EN 61000-6-2
Product Warranty
1 Year
Network Protocols
HTTP, HTTPS, SNMP Traps, TCP Socket IO, MQTT, Modbus TCP, Modbus RTU, OPC UA
