Felis-W1
Tumble Washer Controller

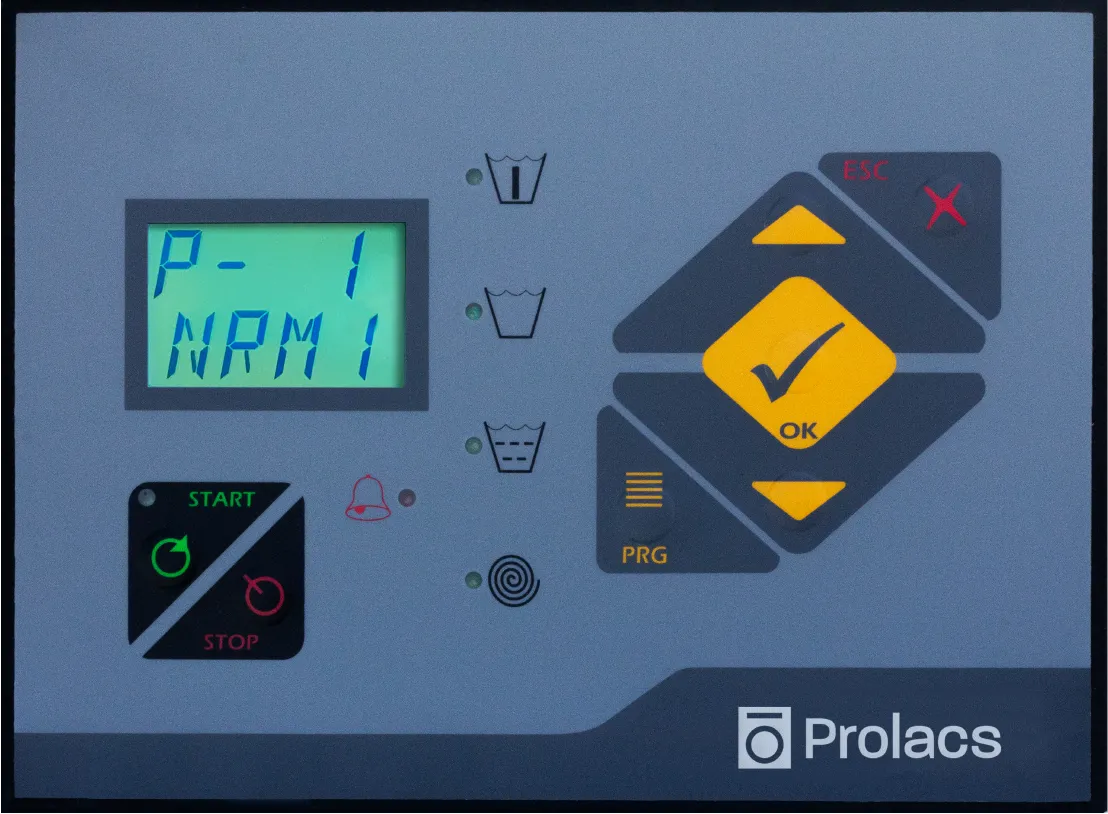

It is an basic model for industrial washing machines designed for heavy industrial conditions. Resistant to vibration and dust. It has a total of 26 programs, 16 default and 10 user defined. It is an easy-to-use, standard series controller with its simplified Custom Design LCD display. Membrane keypad provides ease of use. The design of the control panel is customized according to the needs and designed in accordance with the brand according to customer demands.
Specifications
Features
Inputs/Outputs
Analog Input
Onboard Level Sensor (Hydrostatic 0-100 cm)
Temperature Sensor Input (-10~100 °C)
1
1
Analog Output
AC Drive Control 0~10V DC
1
Digital Input
5-24V DC
4
Digital Output
250V AC 1A Relay NA
13
Programming
Program Count
16 Default Programs
10 User Programs
26
Technical Specifications
Operating Voltage
12 V AC/DC
Operating Temperature
0~60 °C
Operating Humidty
%10 - 85 (Non-Condensing)
Keyboard
7 Keys
Display
45x32 mm Custom Designed LCD
